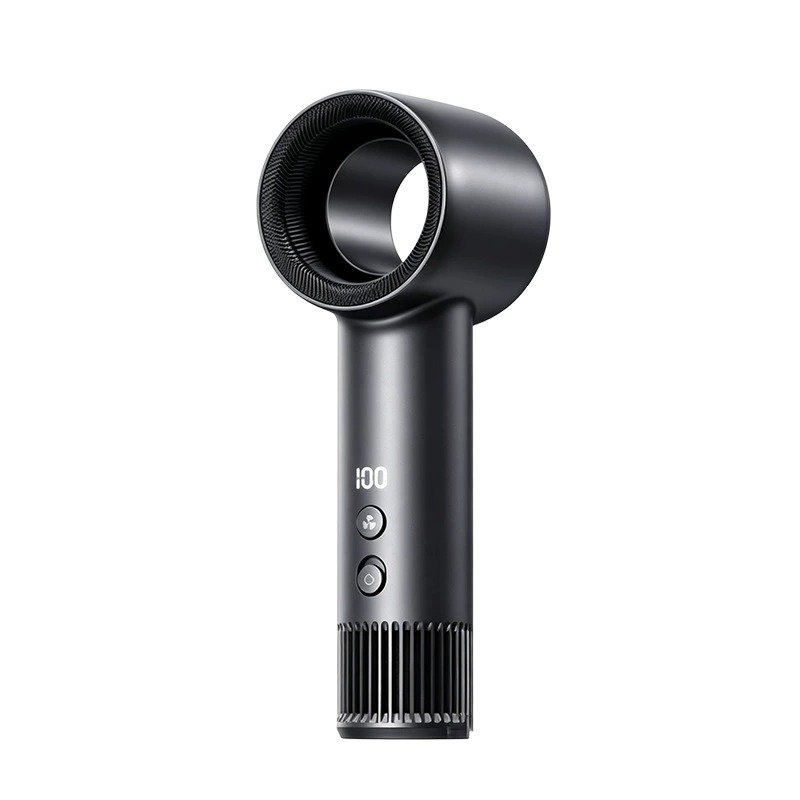

A Bladeless Handheld Fan with a Ring-Shaped Outlet
The HONVENJA HVJ-F05 is a rechargeable handheld fan with a concealed internal impeller and an upper annular air outlet. A high-speed brushless motor draws air through the handle intake and directs it through an internal duct to the ring-shaped outlet.
The product combines 100 numbered speed levels, a separate H high-speed mode, a digital indicator and a 5000 mAh battery. Its 190 × 61.5 × 46.9 mm body and 233 g net weight provide a portable format for everyday personal airflow.
For importers, distributors and buyers reviewing rechargeable cooling products, the following sections explain the configuration, controls, supplier-specified performance and packing data.
Product Details
Concealed Impeller and Annular Outlet
The impeller sits inside the body. Air enters through intake openings in the handle, passes through the internal airflow duct and exits through the upper ring. Conventional fan blades are not exposed at the top outlet.
100 Levels and a Separate H Mode
A sliding control switches the fan on or off. Short presses of the speed button cycle through preset levels 25, 50, 75 and 100. Press-and-hold changes the level progressively, while a double press activates H mode.
5000 mAh Battery and Digital Indicator
The current configuration uses one rechargeable 21700 lithium-ion cell rated at 5000 mAh / 3.7 V. The digital indicator displays speed-level and remaining-charge information, with an H indication when H mode is selected.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | HVJ-F05 |
| Product type | Rechargeable handheld fan with concealed impeller and annular outlet |
| Product dimensions | 190 × 61.5 × 46.9 mm |
| Product net weight | 233 g |
| Drive system | High-speed brushless motor |
| Battery | One 21700 lithium-ion cell, 5000 mAh / 3.7 V nominal |
| Battery nominal energy | 18.5 Wh |
| Charging input rating | DC 5 V / 2 A, 10 W |
| Rated operating power | 24 W |
| Maximum peak power | 30 W |
| Charging time — supplier specified | Approximately 4 hours |
| Airflow settings | 100 numbered levels plus H mode |
| Display | Digital speed-level, H-mode and remaining-battery indication |
Operating and peak power ratings are factory-confirmed specifications, rather than independent laboratory power measurements. The 30 W figure refers to maximum peak power; its voltage, current and duration conditions have not been established.
Supplier-Specified Performance
| Parameter | Supplier specification |
|---|---|
| Maximum motor speed | 65,000 RPM ±10% |
| H-mode air speed | Approximately 12 m/s at 10 cm |
| Noise level | 68 dBA at 30 cm; operating-level condition not specified |
These figures are stated in the supplier specification and have not been independently validated by airflow or acoustic testing. The available EMC, FCC and RoHS documents do not validate these performance figures.
Reference Operating Time by Setting
| Setting | Supplier-specified operating time |
|---|---|
| Level 25 | Approximately 3 hours |
| Level 50 | Approximately 2 hours |
| Level 75 | Approximately 80 minutes |
| Level 100 | Approximately 1 hour |
| H mode | Approximately 45 minutes |
Operating times are approximate supplier specifications for the listed settings. They are reference values rather than independently verified endurance-test results or guaranteed operating times.
Wholesale & Private Label Enquiries
For a wholesale quotation, include model HVJ-F05, your estimated quantity, destination and target delivery date. Add any sample or document requirements so the enquiry can be reviewed against the requested configuration.
For branding, packaging or other project requirements, send your artwork or brief. Feasibility, available configurations, minimum order quantities, costs and production schedules require confirmation for the specific project before an order is agreed.
Packaging & Logistics
| Packing item | Recorded packing data |
|---|---|
| Packed unit dimensions | 101 × 225 × 55 mm |
| Product net weight | 233 g |
| Packed unit gross weight | 446 g |
| Quantity per carton | 40 units |
| Master carton dimensions | 430 × 300 × 477 mm |
| Carton total weight — supplier stated | 18.8 kg; net/gross classification requires confirmation |
| Carton volume — calculated | 0.061533 m³ |

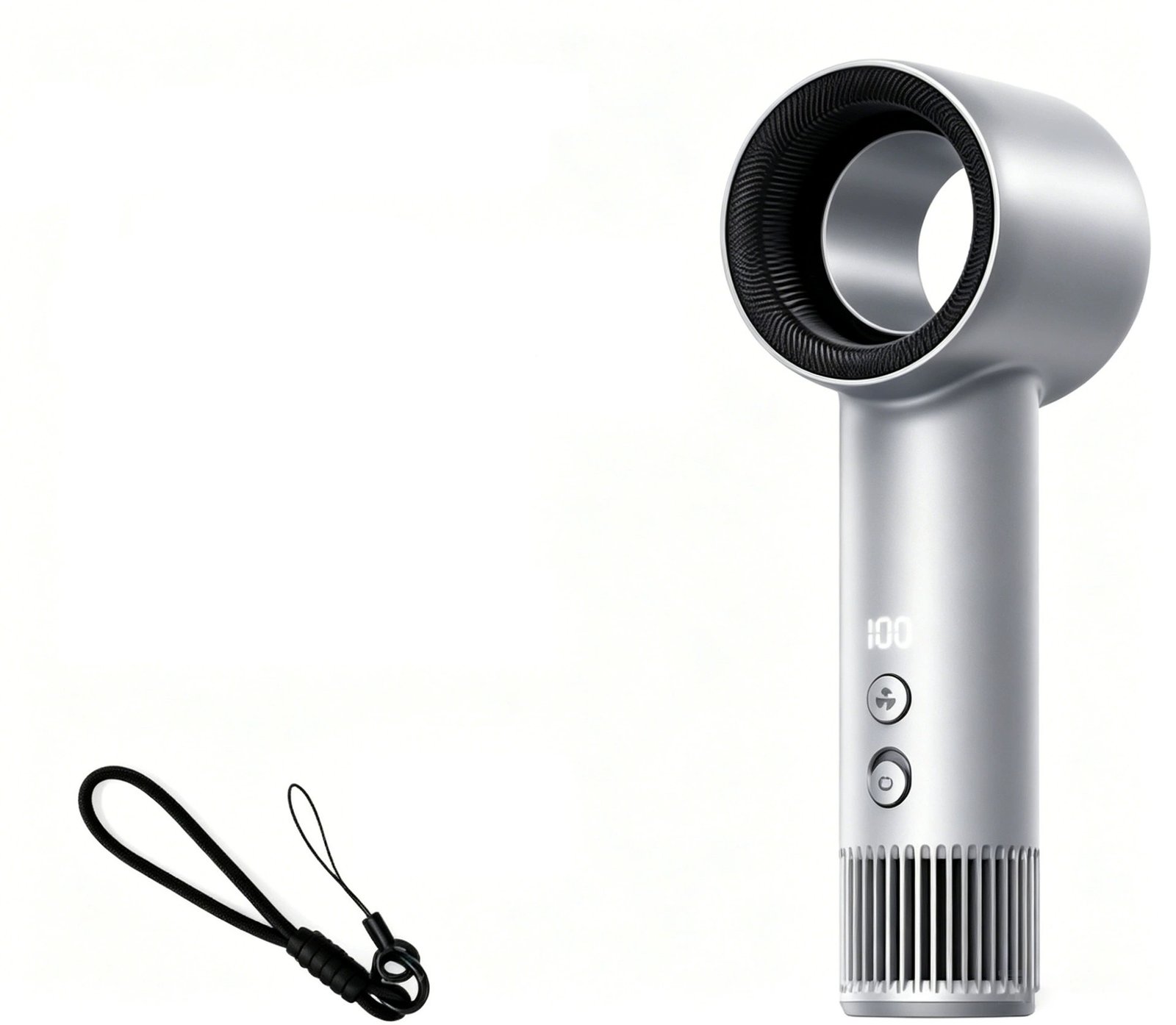

| Included accessories | 1 charging cable and 1 hanging strap |
Confirm the packing format and shipment requirements when requesting a quotation. Carton volume is calculated from the listed dimensions. Any agreed packaging changes require a separate packing and weight assessment.
Documentation for Buyer Review
The documented assessment scope includes whole-product EU EMC, FCC Part 15 Subpart B and RoHS assessment records. Separate documentation covers SDS and UN38.3 testing for the specified 21700-5000mAh battery cell.
Include your destination market and required documents in the enquiry. Document scope, product configuration and shipment applicability need to be checked for the project. Battery-cell documentation applies to the stated cell, and the listed assessments do not represent blanket market-access approval.
Buyer Questions
What does “bladeless” mean for the HVJ-F05?
The fan uses an impeller enclosed inside the body. A brushless motor drives the impeller, drawing air through the handle intake and directing it to the upper ring-shaped outlet. The top outlet has no conventional exposed fan blades.
How are the airflow settings selected?
Short presses of the speed button cycle through levels 25, 50, 75 and 100. Press-and-hold adjusts levels progressively. A double press activates the separate H mode, which is shown on the digital indicator.
How long does the battery last?
The supplier specifies approximately 3 hours at Level 25, 2 hours at Level 50, 80 minutes at Level 75, 1 hour at Level 100 and 45 minutes in H mode. These are approximate reference specifications rather than independently verified endurance-test results.
Can I request branding or different packaging?
Send your artwork or packaging brief together with quantity and destination. Available configurations, feasibility, minimum quantities, costs and timing need to be reviewed and confirmed for your project.
What information is needed for a quotation?
Include model HVJ-F05, estimated quantity, destination, target delivery date and any sample, branding, packaging or compliance-document requirements.
